Dipoles made to order - usually adds 2-5 working days to despatch.

A range of lightweight HF dipoles using our new hardware. Ideal for the single band specialist!

The 80m version weighs in at just 415g (15oz.) - the others are even lighter.

Yellow PVC coated wire used for good visibility when on the ground. Fed with Mil-Spec RG174a/u coaxial cable (10m - 33ft). Terminated in BNC plug.

Comes supplied on three Wirewinders. Extensions cords attached to the dipole ends for easy pegging. Pegs not supplied.

• 10m dipole resonant at 28.250MHz
• 12m dipole resonant at 24.950MHz
• 15m dipole resonant at 21.200MHz
• 17m dipole resonant at 18.100MHz
• 20m dipole resonant at 14.150MHz
• 30m dipole resonant at 10.120MHz
• 40m dipole resonant at 7.050MHz
• 60m dipole resonant at 5.300MHz
• 80m phone dipole resonant at 3.750MHz
• 80m CW dipole resonant at 3.550MHz

Other resonant frequencies available to order. Just contact us to ask.

Resonance tested using the dipole in inverted V configuration with feedpoint at 6m above ground level.

Resonant frequency is approximate.

Power rating 100 Watts.

VSWR bandwidth for VSWR of 1.5:1 or less is plus or minus 1%.

Options

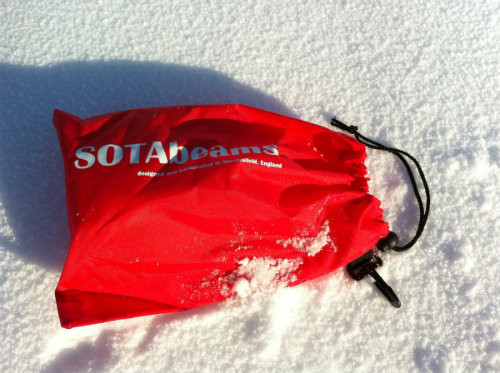

Add a stylish antenna bag and pegs for just £5.99.
