Variable Bandwidth Filter Modules SSB/CW

£44.95
(Inc. Tax)
£37.46
(Ex. Tax)

Customers outside the UK pay the lower (Ex. Tax) prices when ordering. However, some countries require you to pay tax on imported parcels. Details here.

(10 reviews) Write a Review
SKU:
VBFM-100
Shipping:
Calculated at Checkout

Variable Audio Filter Module

NEW Dennis KG4RUL has developed an Arduino sketch for our Vari-filter; this includes a nice display. Download the sketch here and a PDF circuit diagram here. It utilizes a SODIAL USB Nano V3.0 ATmega328 16M 5V Micro-controller CH340G board, or similar, available from Amazon and other sources and an OLED display module such as the HiLetgo 1.3" IIC I2C Serial 128x64 SSH1106 OLED LCD Display LCD Module for Arduino AVR PIC, or similar. Dennis is happy to share this but cannot offer any support - so please do not contact him.

NEW Magazine review - Practical Wireless, used with permission.

Our LASERBEAM-VARI digital variable audio filter module is the perfect addition to your project or even to your existing radio. Unlike analogue filters, digital filters provide near-perfect characteristics. Because of the way that they are implemented, they are better than analogue filters in almost every way!

Video: LASERBEAM-VARI

W2AEW reviews the LASERBEAM-VARI



LASERBEAM-VARI Modules been designed for ease of use. One simple control allows you to continuously vary the bandwidth or the centre frequency of the filter. All settings produce the same great filters with flat passbands and steep skirts. Whether you need passband tuning, filters for digital modes and APRS, low pass filters or CW filters, the LASERBEAM-VARI does it all in one compact module. Dial up EXACTLY the filter you need.

  • Bandwidth 200Hz - 3500Hz
  • Max Passband 200Hz - 3500Hz
  • Indicator outputs for tuning mode (bandwidth or centre-frequency)
  • On board overload indicator
  • User-defined power-up filter settings
  • Two gain settings

Great for all modes: SSB-CW-Digi-AM-NBFM.

Note that this is a bandpass filter only, so it should be very effective at eliminating noise and signals outside the passband, but will not do anything about noise inside the passband. It will make the biggest difference to older or simpler radios that do not already have advanced DSP filtering on the audio output.

A single clickable rotary encoder provides the main functionality. Click to switch between variable bandwidth or centre frequency. Store your favourite setting as a power-up default. Simple but very effective. The filters are continuously variable and always have near perfect characteristics unattainable with conventional analogue techniques.

Kit includes:

  • filter module PCB (ready-built),
  • Bourns rotary encoder (6mm diameter shaft) ,
  • 3 x LEDs,
  • 2 x 10 way headers,
  • 7 resistors, 2 capacitors.

Simple to use: the instructions are downloadable here. The instructions contain information to allow users to control the filter using a microcontroller.

Example filters

These plots have been made by testing a LASERBEAM-VARI using a professional audio spectrum analyser (QuantAsylum QA400). Remember that the LASERBEAM-VARI can synthesise any bandpass filter that you want (200-3500Hz). Click on the links below to see the filters.

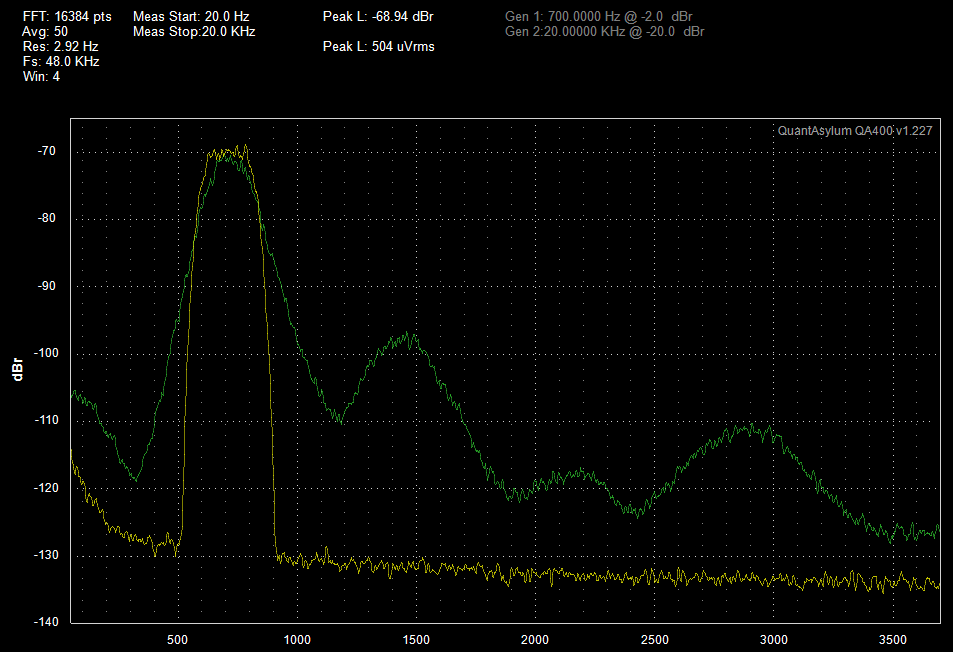

Video: LASERBEAM-VARI compared to Op amp filter

Using your LASERBEAM-VARI module

The most common question I get is "can I fit your filters inside xxx type of radio?". The answer is generally yes.

LASERBEAM-VARI modules are ready-built and easy-to-use. Make a few connections and you will soon be good to go.

In most radios they can be fitted before the volume control. You may need to adjust levels. The only control you need to bring to the front panel is the rotary encoder although the mode LEDs are very useful. In essence, some ingenuity is needed to retro-fit VARI-BEAM filters. The effort is worth it though, as it really can make old receivers sound quite spectacular.

IMPORTANT NOTE: The LASERBEAM-VARI module is not suitable for use with our  "Ampifier and Enclosure kit for LASERBEAM-DUAL Filters" (sku BOXA-100)

Also available from our international agent(s):



LASERBEAM-VARI modules have been designed to be easy to use. Connections are kept to the minimum:

  • DC power
  • Rotary encoder
  • Audio in (single ended)
  • Audio out (singled ended or differential)
  • Optional Mode LEDs (2)
  • Optional Off-board Overload LED
  • Optional Gain switch (Voltage gain 1 or 4)

An LED on the module lights if the input level is too high making it easy to set up your filter. The audio input is protected on the PCB so you can't easily damage it!

The filter module will drive high-sensitivity (e.g. > 110 dB SPL/mW) earbuds directly. For higher outputs a simple audio amplifier such as an LM380N could be added. LASERBEAM-VARI modules are Altoids-friendly!

The modules are perfect for use in existing radios or an an outboard filter. We used one with a Rockmite and the difference was simply amazing! These filters are also great with the popular PIXIE transceiver.

LASERBEAM-VARI Module Specification

Supply voltage: 5 - 15 Volts (reverse polarity protected)

Typical supply current: 50 mA @ 12 Volts

Filter type: multi-tap FIR (KBD Window)

Phase response: linear

Module size: 36 x 36 mm (approx 1.4 x 1.4 inches)

Weight: 5.5 grams

Voltage gain: 1 or 4 (selectable)

Ultimate rejection: better than 60 dB

Passband ripple: <0.15 dB

Input impedance: 8000 Ohms

Output impedance: 750 Ohms

Output type: differential (can be used single-ended)

Maximum AF input Voltage: 2.4 V pk-pk (input protected)

Minimum AF input Voltage: 300 mV pk-pk (recommended)

Maximum AF output Voltage: 2.4 V pk-pk

Processing delay: 22 mS

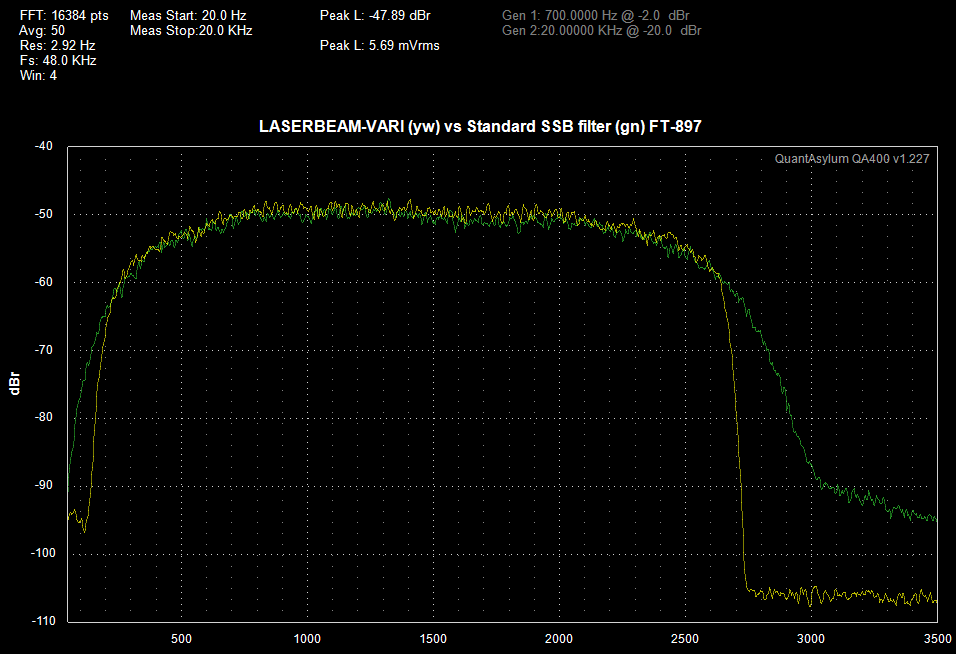

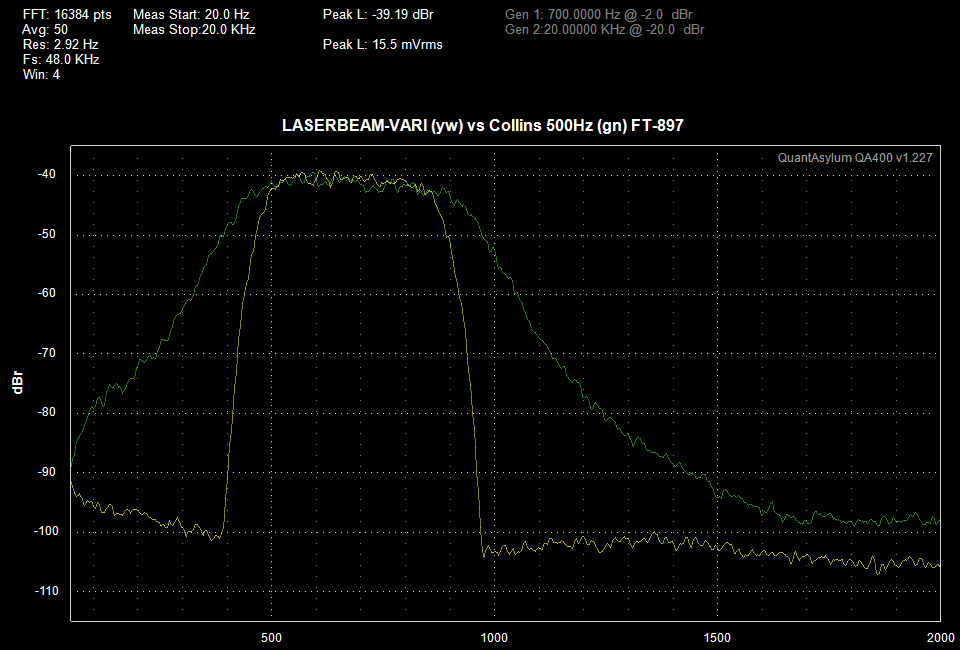

What is the difference between a LASERBEAM-VARI filter and a standard IF crystal/mechanical filter?

Characteristic VARI-BEAM FILTER IF Crystal/mechanical filter
Cost Low High
Bandwidth options Fully variable 1 per filter
Within AGC loop? No Yes
Shape factor Excellent Average
Ultimate rejection >60dB > 50dB (but usually well away from filter bandwidth)
Filter gain Yes - if required Typically 6dB loss
Residual noise Yes - low level No
Requires power Yes No

10 Reviews Hide Reviews Show Reviews

  • 5
    Perfect Product

    Posted by Tonnie Wittenaar (PE1DYM) on 8th Nov 2019

    This tiny gem is a nice product to filter out QRM. It is simple to connect, simple to use. Mayebe an additions of a serial port to connect it to a microcontroller would be a nice feature.

  • 5
    Excellent

    Posted by Werner PA3GYV on 29th Aug 2019

    I use this filter in my uBITX qrp radio. First used it with the extra mentioned oled display but couldn’t get that work properly. With the leds only it also working fine. It’s a bit difficult to set the CF by ear but once found the filter works excellent.

  • 5
    Very useful module

    Posted by Howard K4LXY on 1st Aug 2019

    I've had two of these. The first one I built into a separate case but the second I built into a QRP rig. At first I found it confusing to track where the center frequency was. However, I now have the default center frequency set where I want it and mostly use the bandwidth adjustment to filter out interfering signals.

  • 5
    variable bandwidth filter module

    Posted by Putman Luc on 5th May 2019

    Works prima. The rotary encoder was not ok and you have send me imediatly an other wan.Thanks!!!

  • 5
    Vari-filter

    Posted by Rick Caputi on 28th Feb 2019

    The vari filter is s great product!!!

  • 5
    Best filter I've ever used

    Posted by Peter, GM0EUL on 14th Apr 2018

    This filter is outstanding in its performance and versatility. It was fun and easy to build and is a great addition to my YouKits EK-1C which doesn't have narrow enough filtering for a busy cw band. Its now brilliant. I love that you can tune the centre frequency and put it exactly where you want relative to the sidetone. I also use it a lot with my IC-718 and its a great complement to the rig's own 500Hz cw filter and DSP. I built a small amplifier module into my filter to drive bigger headphones or a small speaker. The suggested LM386-based amp is far too noisy and I couldn't get it to reduce hissing, there are suggestions on the web but they don't work well and it also seemed prone to RFI (which the filter itself isn't). After some research and experimentation I used a TL071-based amp instead and, for a similar price and a similar external component count, it is very much quieter and cleaner. I recommend it as better than the LM386 to boost the output from the filter if you want to drive something more than efficient ear-buds. I have it configured for about 15db gain and have a small volume control. All built in to a SOTAbeams ABS enclosure box (medium) which I also rate very highly and recommend unreservedly.

  • 5
    A simple to use well made DSP circuit.

    Posted by Michael Iafrate on 29th Apr 2017

    I remember making my first audio filter years ago using an RC network and some op amps. It worked OK but nothing like this. It is amazing how selective this filter can be. The instructions are clear and simple. It took a few minutes of experimentation to get how the two variables interact. This is a great addition to a receiver that needs a little more selectivity.

  • 4
    Filter is suberb but tuning not easy

    Posted by Ulli DC8SE on 21st Jan 2017

    Its the first time that I test a filter that calculate the BW and the center frequency. The filter is superb!!!! But the tuning of BW and center is not easy! ! From my opinion I missing two LED lines one line for the BW and one line for the centerfrequency. summary: I recommand this Filter!

  • 5
    Easy Kit

    Posted by Peter, ZL1SX on 27th Aug 2016

    After watching the review by W2AEW I was tempted. It arrived within a few days, and that's to New Zealand. After a bit of thinking, I mounted all of the external passive components on a matrix style PCB, used a couple female header plugs in case problems came up, which they didn't, to the main board and fired it up. Let me say it lives up to the promise. I did add a little push button in parallel with the function switch on the encoder to enhance the experience. Used a nice little aluminium case with a 9v battery and the push button on top. Wish I could post a picture here. What is not emphasized is that you just connect the headphones output of the transceiver, my FT 817, and then connect the headphones to this unit. Simple as.

  • 5
    Audio filtering doesn't get better than this.

    Posted by Rick JI1HSV on 9th Aug 2016

    I originally purchased the CW filter with the intent of comparing it to my variable SCAF filter but before I could build the unit SOTABEAMS released their VARI filter so I got one and started building a dual channel DSP filter with audio amps. (Sent the CW filter for re-progamming, different review) I was certainly not disappointed, this filter REALLY works. It is a bit subtle though, there is none of the ringing or super peaking you would find in other types of audio filters, adjacent signals just disappear! Initial setup of the VARI filter can be a bit confusing as both center frequency and band width are variable. I used a IPad app called 'SignalScope' where I can see a FFT of the audio. I first set the center frequency to the side tone of transceiver, switch to bandwidth mode and push the 'default'. I then set the bandwidth and pushed the switch again. You have to be creative in mounting the filter as there are no holes on the board and smd parts are mounted very close to the edge. I inverted the 10 pin header pins and then these plug into a perf board that has 10 pin female headers. This allows mounting the LED and encoder resistors under the DSP filter on the perf board. I use two of the VARI filters followed by 2 watt audio amps and some mini relays for bypassing everything for AM SWL operation. I would definitely recommend using a DC source of no more than 9VDC. There is no reason to unduly stress the little 3.3VDC SMD regulator on the DSP board. Bottom line... Cost/Performance is excellent. Service from SOTABEAMS is excellent. If anyone has any questions my call is on QRZ.com
