WOLFWAVE Advanced Audio Processor

£224.50
(Inc. Tax)
£187.08
(Ex. Tax)

Customers outside the UK pay the lower (Ex. Tax) prices when ordering. However, some countries require you to pay tax on imported parcels. Details here.

(13 reviews) Write a Review
SKU:
WOLF-100
Shipping:
Calculated at Checkout

The WOLFWAVE Advanced Audio Processor

Review by Michael G0POT

Transform your listening experience with the WOLFWAVE. So easy to use and so amazing to hear.

WOLFWAVE simply connects to the headphone output of your radio. This is a product that is set to grow as we add more facilities. It's up-dateable by users using USB.ww-flow-diagram1.jpg

Features

Click here to download a short data sheet highlighting features for SSB and CW

Click here to view a video about some of the latest enhancements

Click here to read review from Practical Wireless (used with permission)

Click here to get the latest firmware

  • Three exciting binuaral modes for SSB and CW VIDEO - must use stereo headphones
    • Unique spatial effects to enhance your listening experience - see video about using binaural here.
  • Ten individually adjustable notches
    • Tailor the passband to your exact requirements
  • Left-right balance control
    • One ear better than the other - no problem!
  • Morse decoder PHOTO
    • displays incoming CW on your WOLFWAVE screen VIDEO
  • Fully adjustable audio band-pass filtering
    • instantly adjustable for voice, data and CW (b/w 50 Hz to 5 kHz) VIDEO
  • State-of-the-art noise reduction
    • 100 levels plus advanced control functions VIDEO
  • Adaptive tone eliminator
    • get rid of annoying carriers - but leave CW AUDIO
  • Age-related hearing loss correction
    • using ISO 7029:2017 median hearing-loss curves for males or females VIDEO
  • One-touch bypass function
    • see how much improvement your WOLFWAVE makes
  • Memories for your settings
    • easily store and recall your favorite settings
  • Bright, clear, spectrum display
    • see what's happening in your radio pass-band
  • Audio test generator including two-tone test mode
    • sine, square and triangular wave VIDEO
  • Experimental CW regenerator
    • enjoy noise-free CW QSOs VIDEO
  • On-screen help
    • so easy to use
  • Tuning/Overload LED
    • dual colour indicator makes tuning easy
  • User updatable firmware by USB
    • keep up with the latest developments
  • Speaker output: 1.1 Watts @ 10% THD [speaker output must not be grounded]
    • full power achieved when using 12 Volt external supply
  • Separate speaker and headphone output
    • great for exhibition stations
  • Latency
    • 20 mS bypass, 60 mS filtering
  • Low current drain
    • 60 mA quiescent; battery-friendly!
  • Low power standby mode
    • less than 4 mA
  • Small size
    • 105W x 80D x 27H (mm)
  • Lightweight
    • 140 grams

WOLFWAVE is supplied with 1 x USB lead (power) and 1 x Audio lead (3.5mm jack plugs).

Instructions and more information at www.WOLFWAVE.co.uk

Also available from our international agent(s):

dx-engineering-reseller.pngwimo-de-agent-logo.pnglutz-electronics-reseller.jpgercomer-reseller-logo.jpgradio-parts-japan-agent-logo-1-.png


Technical information

WOLFWAVE uses a high performance 32-bit ARM Cortex M7 processor. This is the highest performance processor of the energy-efficient ARM M-series. This powerful processor is paired up with a 20-bit CODEC and a 1.6 Watt audio amplifier for superb performance.

Facebook Group

There is an unofficial WOLFWAVE Facebook group here. It's a good place for user-to-user support and also to suggest new features that you would like to see in this exciting product.

FAQ

Q. How does WOLFWAVE compare to other similar portable devices? A. Click here for our handy comparison.

Q. Where can I find out more about WOLFWAVE? A. Our blog carries some further examples. Also see the WOLFWAVE website.

Q. Will a WOLFWAVE improve the filtering in my FT817/818

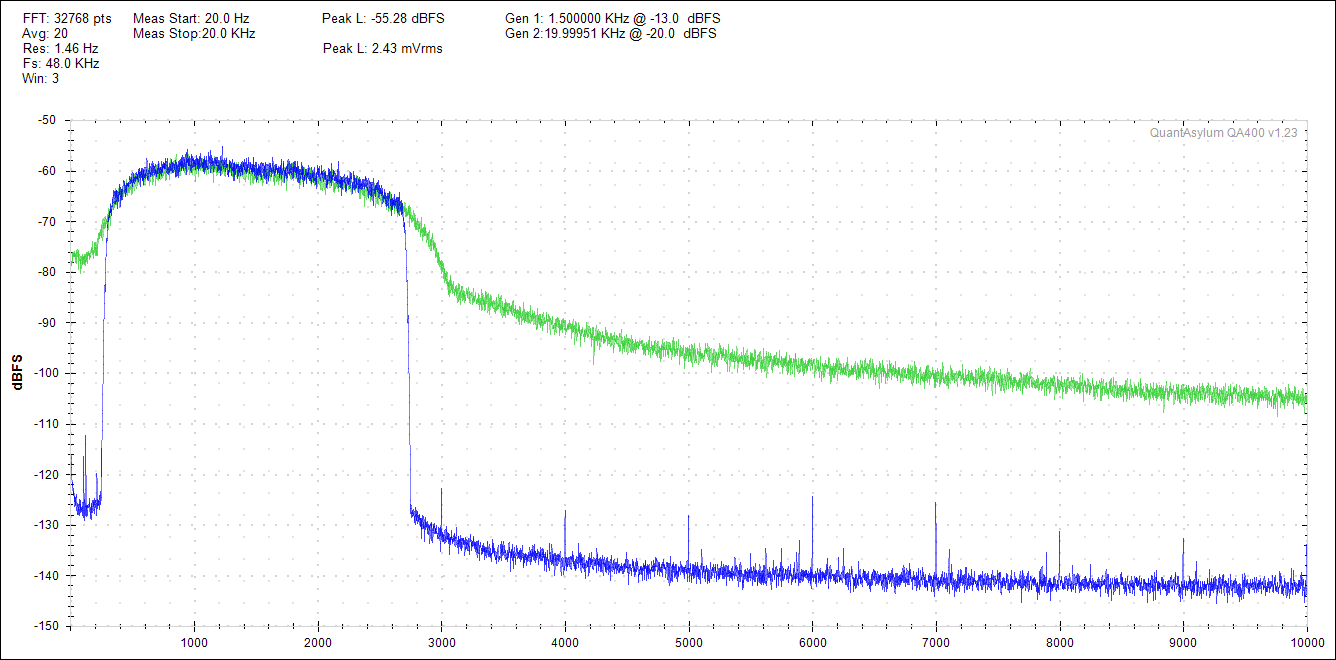

A. Yes. The attached plot shows the standard FT817/818 filter (green) and the addition of a WOLFWAVE (blue). the difference in skirt selectivity is huge.

Q. Is there a desk-stand for the WOLFWAVE?

A. Yes, you can 3D print one thanks to Nicolas F4EGX.



13 Reviews Hide Reviews Show Reviews

  • 5
    WolfWave

    Posted by Jakob Scherer on 18th Jul 2021

    I have it now in operation for about 10 days. I unpacked it, read through the web site wolfwave.co.uk and plugged it into my headset cable. It works fantastic. I do mostly CW. It allows me to pick out the faintest signals and work QSOs I could never do without the WolfWave. I am a senior with decreasing hearing and a military grade tinnitus. I am happy with the device and I can recommend it to anyone. Yes, it is expensive, but yes, it is good value for the money.

  • 4
    Beats the Filtering of my 7300 for CW

    Posted by Bill Alpert on 14th May 2020

    I need all the help I can get when it comes to copying the code. As an aspiring CW operator, a crowded and noisy band can be impossible to navigate at times. The Wolfwave has opened up some new vistas while I operate from my noisy QTH. To my ear, this device does a better job than my IC-7300 at filtering adjacent signals or band noise. When properly set, the "CW Regeneration" feature is almost mind blowing. The morse decoder also works well. New features seem to be added on a regular basis and are simple to install. There is a novel "band stop" filtering feature which I have yet to explore. The regular bandpass filter is intuitive and simple to operate. I love the flexibility of being able to move the Wolfwave between my rig and my computer, where I often use it to copy from the Web SDRs across the world. My only (minor gripe) is that the controls and menu system are not the most intuitive or easy to operate. There is a bit of a learning curve to get the most out of the device. But all in all, kudos to the Sotabeams team for a novel and and powerful new tool.

  • 3
    wolfwave

    Posted by sydney perrin on 26th Mar 2020

    not as good as i hoped for could do with interface to computer screen a bit small with my failing eyesight price bit high

  • 5
    works well

    Posted by Unknown on 18th Mar 2020

    NEED BIGGER SCREEN AND MORSE DECODE NOT VERY GOOD. [Admin: thank you for your feedback. I am pleased that in general it works well for you. It sounds like you may have some settings wrong for the Morse Decoder. Please get back to us if you need any help.]

  • 4
    Wolfwave

    Posted by Rony on 27th Feb 2020

    I was really impressed about the possibilities and functions. Also the possibility for futures options.

  • 5
    wolfwave

    Posted by Mr David Allen on 14th Nov 2019

    The Wolfwave unit has made a big difference to all of my radios but especially to my home brew equipment. All the filtering, noise reduction and bandwidth, band stop etc work very well. I mostly use CW where the CW reader has been very useful when receiving fast CW, (above the speed that I can read!!. It’s better than my KX2 at reading CW). The screen is very clear but a little small. The help button is very useful but a hard copy of the help notes would have been good. Early days, but so far it works very well.

  • 5
    Wolfwave advanced audio processor

    Posted by Richard on 19th Sep 2019

    Excellent device that works much better than the built in factory fitted DSP noise cancelling on my rig. It has transformed a 30+ year old HF rig to such a degree it's now in daily use and my 4 year old radio gets little use. CW decoding function also works very well. I can't recommend this enough.

  • 5
    It's okay!

    Posted by Burmeister , Dieter on 1st Sep 2019

    I use the "wolfwave" since two weeks! Here we get strong QRM on the lower bands! I can make QSOs now, which without this wonderful thing were impossible! Special in a contest it was very helpful! I use it every day now! Thanks to the om's for so an useful idea! Vy 73 es gl de "Ter" / DK5ZX!

  • 5
    Wolfwave

    Posted by Steve Ayers (KE5ES) on 19th Jul 2019

    WOW!!! I watched the video and thought "Hey I want that!". After getting it and learning how to set it I realized that this little device is amazing. I could have bought a internal filter for my FT-817 but I use this device on both the 817 and my LNR Mountian Topper 3B. With the LNR it amplifies the audio and takes the (I can't mimic the sound with typed words) out. It is so fun to dial it down to that ONE signal and ignore all the others until after the QSO. Get your's now while products last!!! This is not a paid endorsement. LOL!! The product is just that great!!!!!

  • 5
    Wolfave

    Posted by Dr Colyn Baillie-Searle on 17th Jul 2019

    I have used the Timewave DSP 599zx for sometime and I replaced it with the Wolfwave. I find this filter much better than the Timewave. There is no ringing and is easy to use the menus. The CW reader is very good but cannot compare it except to my ears and it is reasonable correct, which I am impressed with. I must admit I think this filter is a winner and very much cheaper than the Timewave one which has to be purchases from the states.
